Slope House


















A sloped house impressed into the side of a Western Catskills mountain.

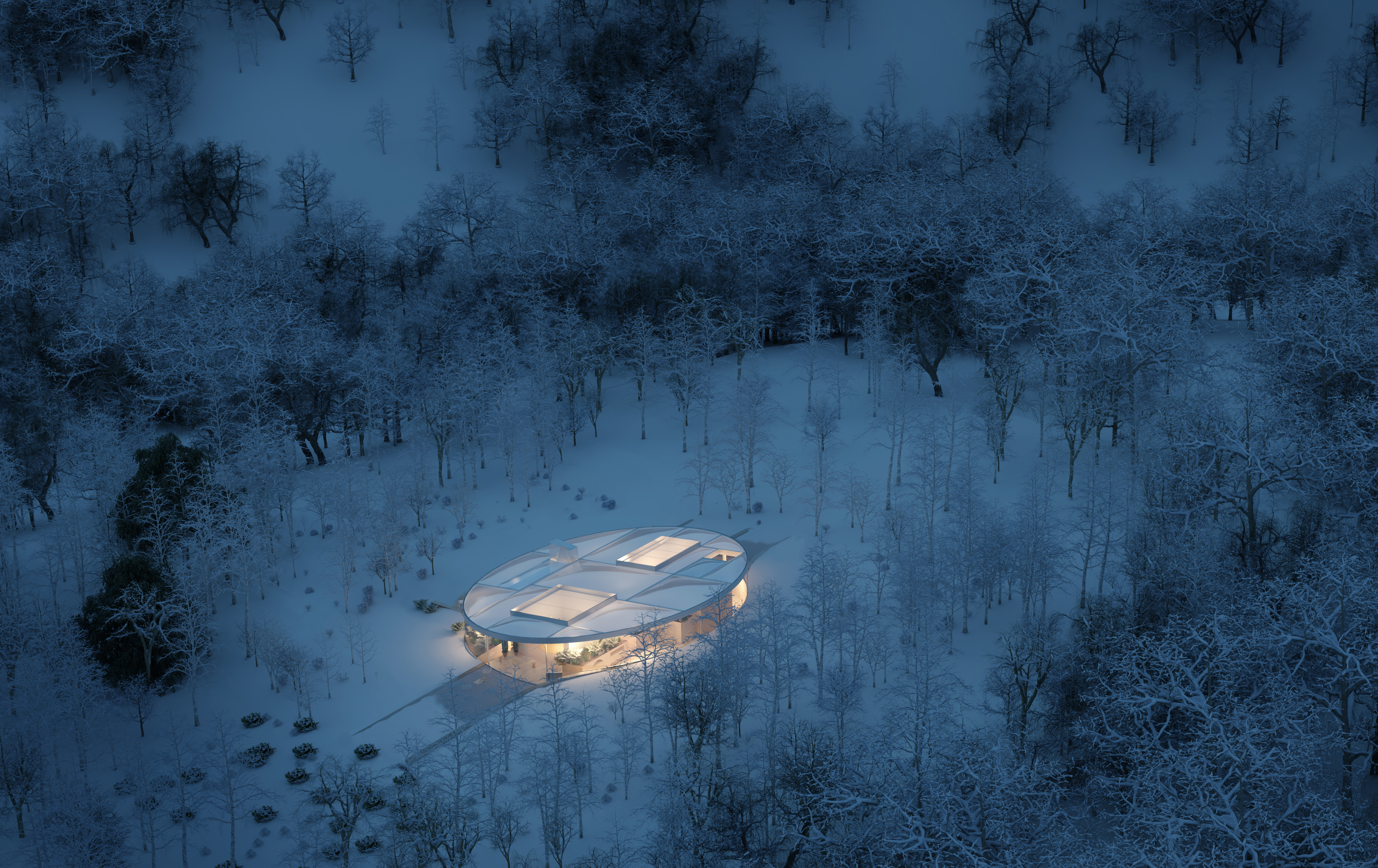

Winter Aerial

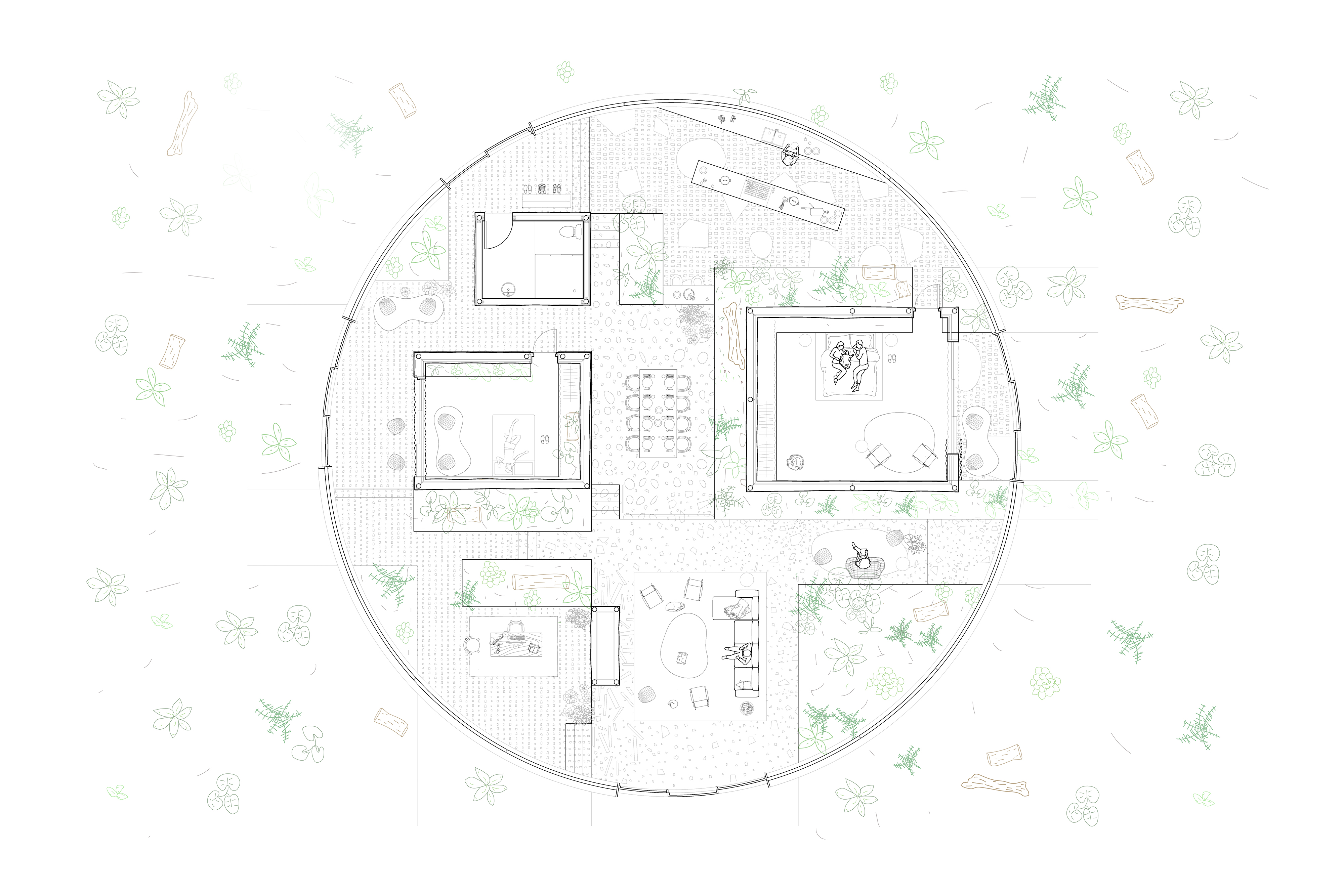

Ground Floor Plan

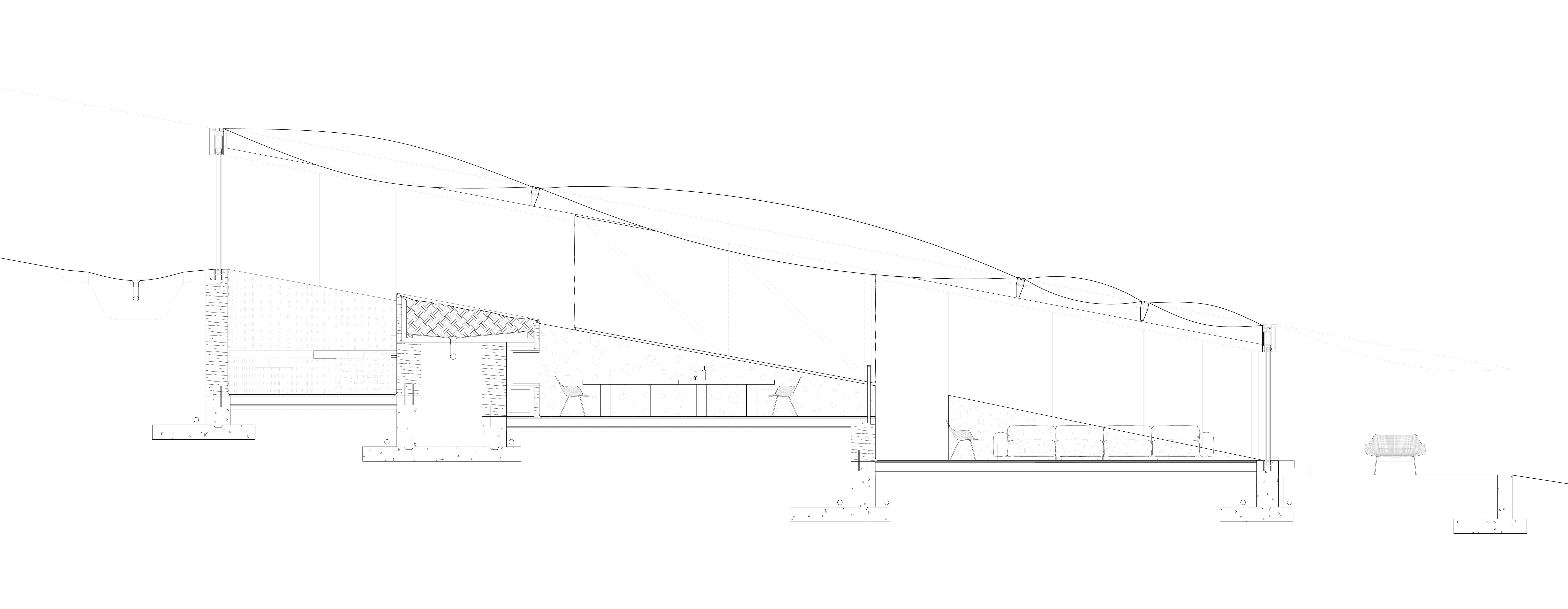

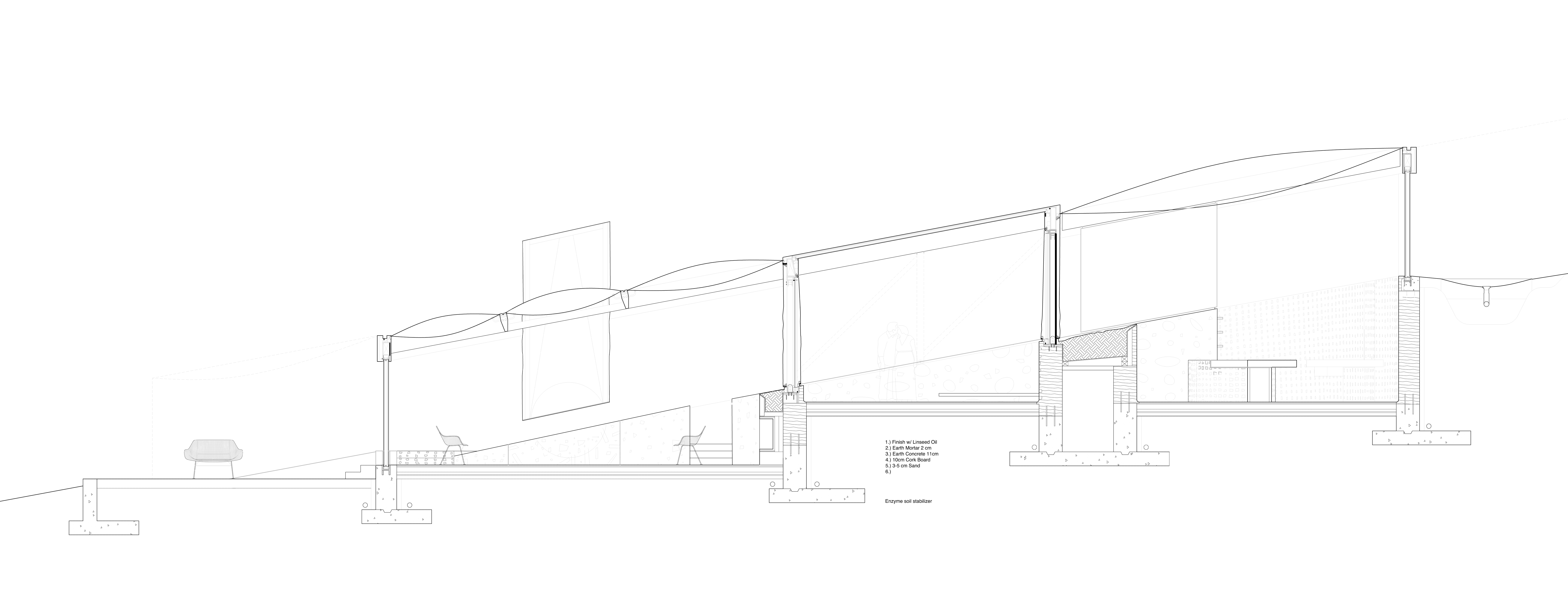

Section A




Ground Floor Plan

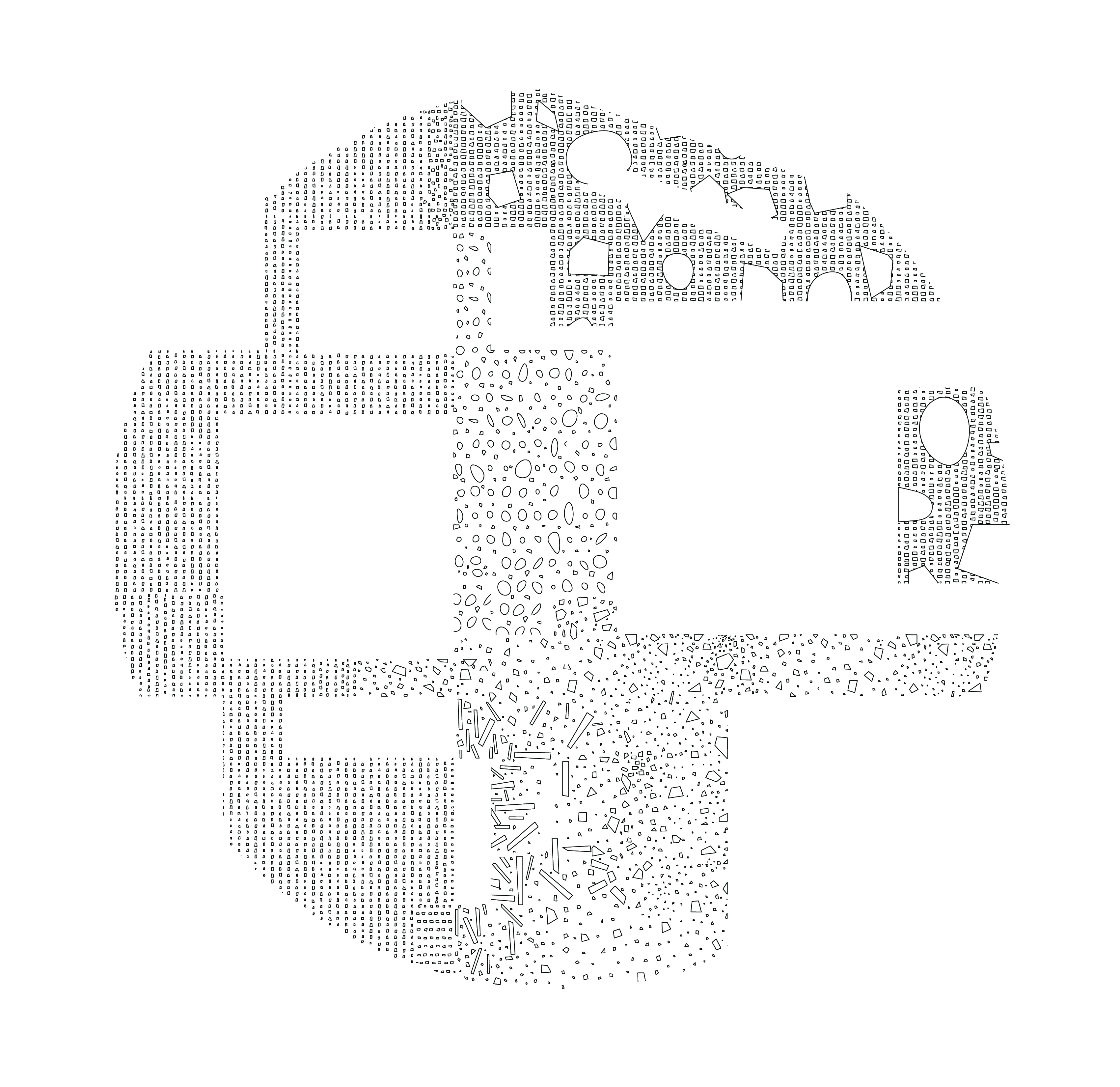

Aggregate Plan

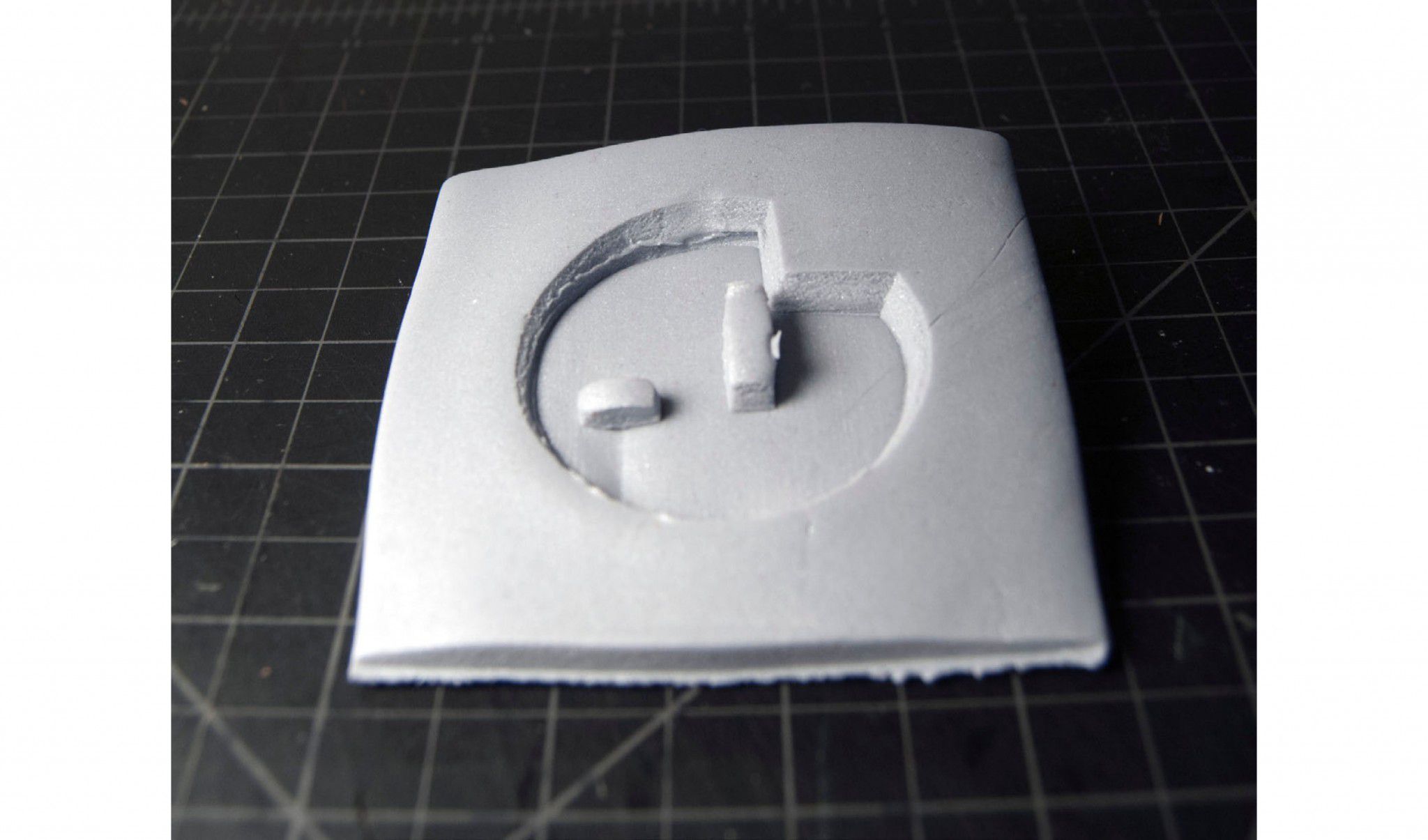

Earth Relief
Situtated on a 4% grade, the house is impressed into the topography's slope. The ground is leveled into programmatic terraces by tamping and stablizing the soil with impregnated binders. Found aggregates are used to further stablize the ground, the erratica gives each space distinction. Rooms are defined by ground left at the 4% grade, a top of which is its found condition, fallen logs, limestone boulders, and indigenous plantings run continuous through the house left as they were, undisturbed.

Topographic Relief
Wrapped View




Ground below, light above
The house is concieved of as a two distinct building systems, one dense and organic, the second, ultra-lightweight. At the point of the original line of the site's slope, the house toggles between these systems. It transitions from the dense rammed soil to a lightweight aluminum frame system that filters light in and defines rooms enclosures. Part of this system is a hyperlight ETFE roof system, that maximizes natural filtered light.

Kitchen
At the rear of the house, the relief in the ground is the deepest and light and views are framed from above.

Dining Area
Towards the center of the house the balance between being within the earth and the shroud equalized

Dining Area
Towards the center of the house the balance between being within the earth and the shroud equalized

Dining Area
Towards the center of the house the balance between being within the earth and the shroud equalized

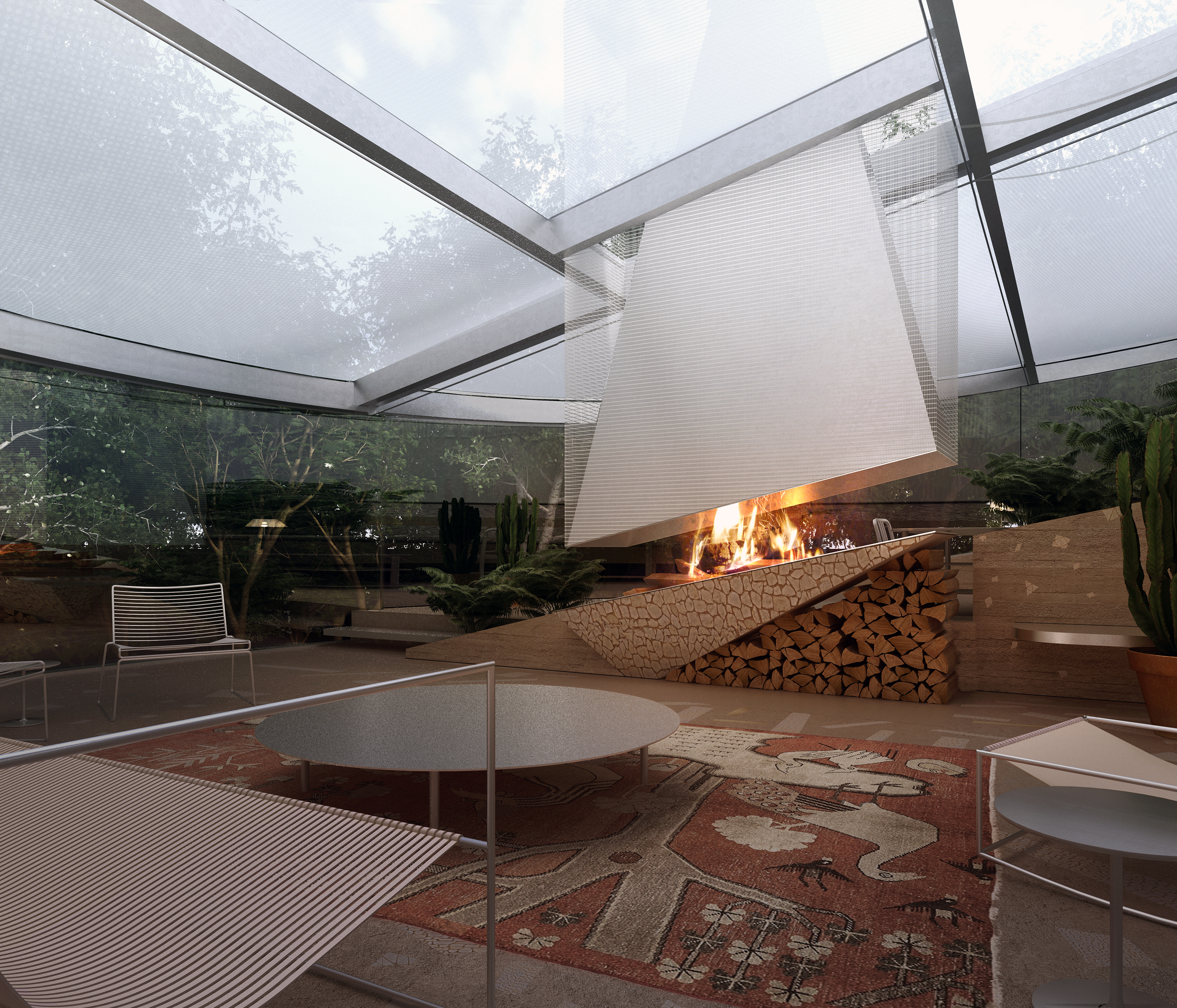

Living Room
At the front, in the living room, the earth relief blends with the exterior topography allowing uninterrupted views.

Ground Floor Plan
